Features:
Small and light
Compact structure
High reliability
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | |||
| Sound Pressure Level dB at 30cm | 94.44 | Measured 90 dB at 50cm | ||
| Frequency kHz | 22 | Rated frequency ± 1 kHz | ||
| Voltage V | 2.83 | 10 | RMS sine wave | |
| Temperature ºC | -10 | 50 | ||
| Width mm | 41 | ; Case:Fire-resistance ABS/Black | ||
| Height mm | 14 | |||
| Weight g | 6.5 | |||
| Termination | pin |

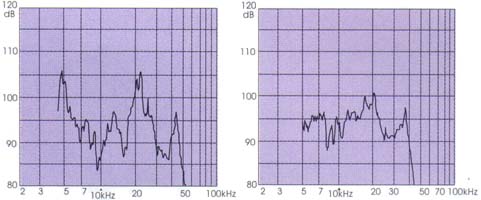

Characteristic Response:

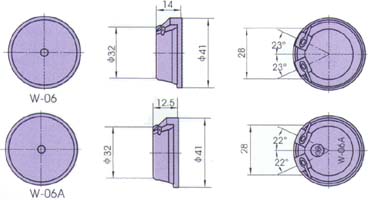

Dimension Drawing:
