Features:
Compact and light
Wide voltage range
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.46 | Measured 85 dB at 10cm | ||
| Frequency kHz | 4 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 1 | 12 | 18 | DC voltage |
| Current mA | 20 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 15.4 | Case:PC/Black | ||
| Height mm | 13.9 | |||
| Weight g | 2.5 | |||
| Termination | pin | Pin separation: 7.62mm |

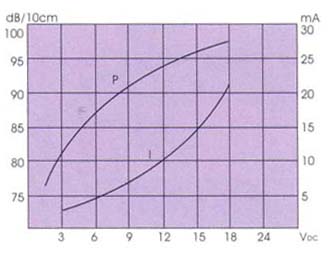

Characteristic Response:

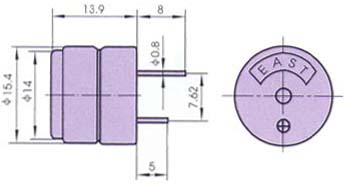

Dimension Drawing:
