| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 100.5 | Measured 90 dB at 9V-DC & 100cm | ||
| Frequency kHz | 2.5 | 3 | 3.5 | Rated frequency ±0.5 |
| Voltage V | 4 | 9 | 28 | DC |
| Current mA | 30 | 9V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 41.8 | |||
| Height mm | 25.4 | |||
| Termination | lead wire |

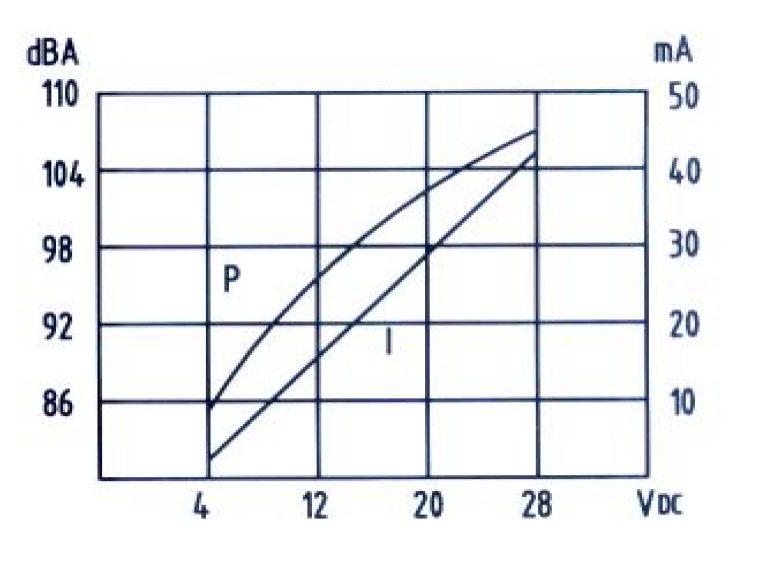

Characteristic Response:

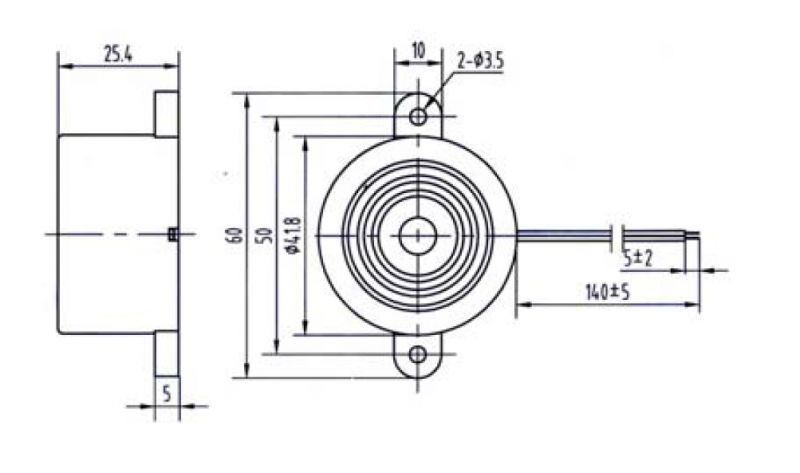

Dimension Drawing:
