Features:
Compact structure
Sealed for wave soldering and washing
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Square Wave | ||
| Sound Pressure Level dB at 30cm | 70.46 | Measured 80 dB at 10cm | ||
| Frequency kHz | 4.1 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 9 | peak to peak voltage of square wave | ||
| Peak voltage allowed V | 20 | |||
| Current mA | 2 | |||
| Input Capacitance nF | 10 | ± 30% measured at 120 Hz | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 14 | Case:PC/Black | ||
| Height mm | 7.5 | |||
| Weight g | 1 | |||
| Termination | pin |

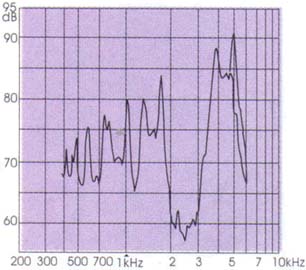

Characteristic Response:

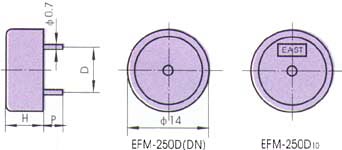

Dimension Drawing:
