Features:
Small size
Low height and light weight
Easy mounting
High reliability
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 80 | Measured 80 dB at 30cm | ||
| Frequency kHz | 3 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 24 | DC voltage |
| Current mA | 15 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 24 | Case:PC/Black | ||
| Height mm | 10 | |||
| Weight g | 4.3 | |||
| Termination | pin | Pin separation: 15.00mm |

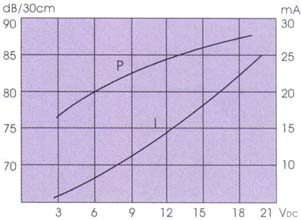

Characteristic Response:

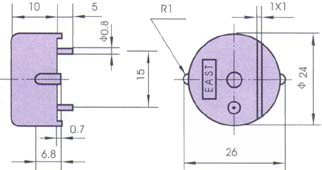

Dimension Drawing:
