Features:
High output
Sealed type
High reliability
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Pulse | ||
| Sound Pressure Level dB at 30cm | 92 | Measured 92 dB at 30cm | ||
| Frequency kHz | 2.9 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 16 | DC voltage |
| Current mA | 20 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 45 | Case:Fire-resistance ABS/White | ||
| Height mm | 26 | |||
| Weight g | 22 | |||
| Termination | lead wire |

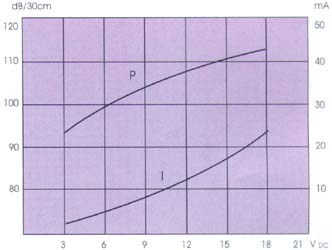

Characteristic Response:

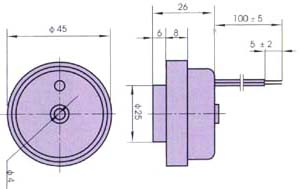

Dimension Drawing:
