Features:
High output
Low current
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 90 | Measured 90 dB at 30cm | ||
| Frequency kHz | 3.9 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 24 | DC voltage |
| Current mA | 15 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 32 | Case:ABS/White | ||
| Height mm | 15 | |||
| Weight g | 8.4 | |||
| Termination | lead wire |
Characteristic Response:

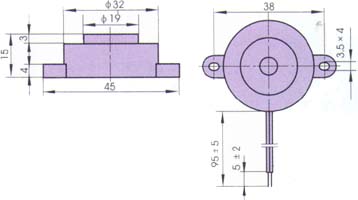

Dimension Drawing:
