Features:
Low voltage
High output
Low current consumption
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 100 | Measured 100 dB at 30cm | ||
| Frequency kHz | 3.5 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 20 | DC voltage |
| Current mA | 30 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 30 | Case:PC/Black | ||
| Height mm | 20 | |||
| Weight g | 8.9 | |||
| Termination | pin | Pin separation: 14.00mm |

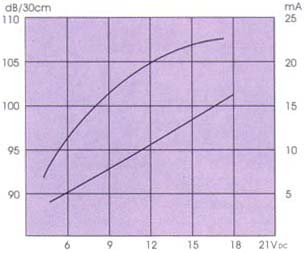

Characteristic Response:

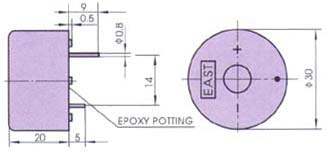

Dimension Drawing:
