Features:
Loud output
Low current consumption
High efficiency and reliability
PCB mounting
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 110.46 | Measured 100 dB at 100cm | ||
Frequency kHz | 3.2 | Rated frequency ± 0.5 kHz | ||
Voltage V | 7 | 9 | 20 | DC voltage |
Current mA | 50 | |||
Temperature ºC | -20 | 60 | ||
Width mm | 40 | Case:ABS/Black | ||
Height mm | 20 | |||
Weight g | 12.5 | |||
Termination | pin | Pin separation: 18.00mm |
Characteristic Response:

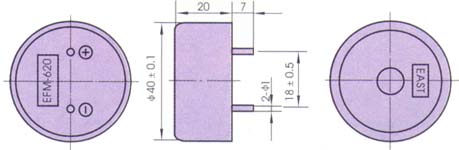

Dimension Drawing:
