| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85 dB at 5V & 10cm | ||
| Frequency kHz | 1 | 1 | 1 | |
| Voltage V | 3 | 5 | 7 | |
| Current mA | 80 | 1000Hz ; 12V p-p Square Wave 5V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 25 | |||
| Height mm | 12.5 | |||
| Termination | pin | Pin separation: 10.00mm |

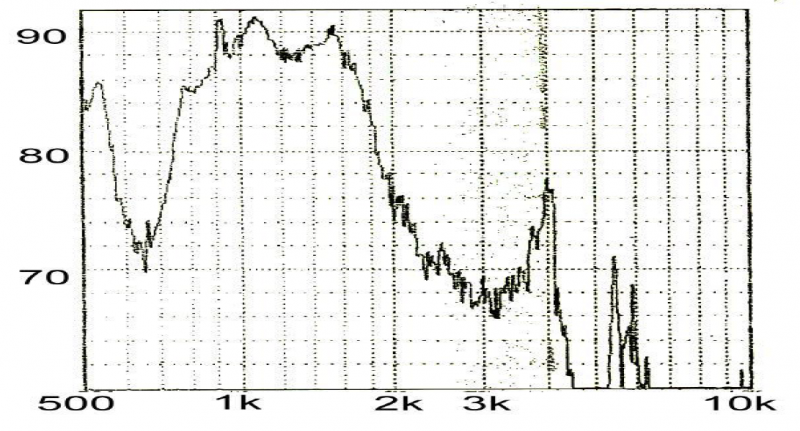

Characteristic Response:

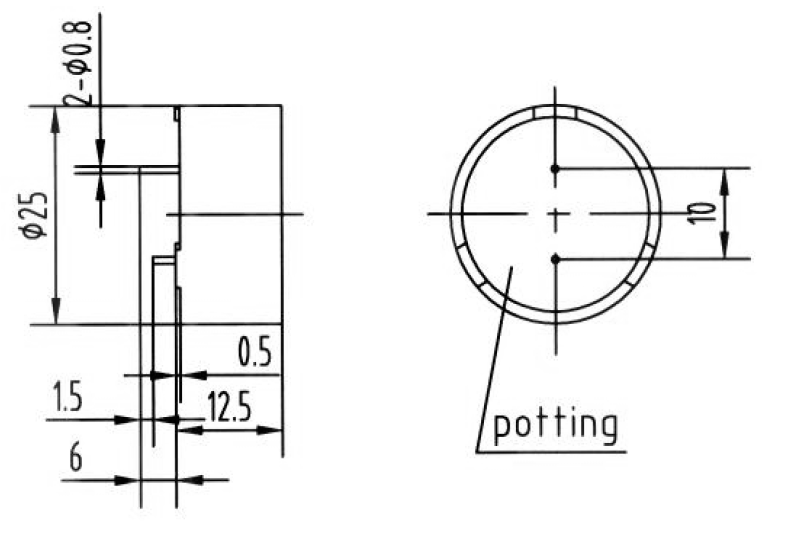

Dimension Drawing:
