| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 70.5 | Measured 80 dB at 5V-DC & 10cm | ||
| Frequency kHz | 2.4 | 2.7 | 3 | |
| Voltage V | 4 | 5 | 7 | DC |
| Current mA | 50 | 5V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 9 | |||
| Height mm | 5.5 | |||
| Termination | pin | Pin separation: 5.00mm |

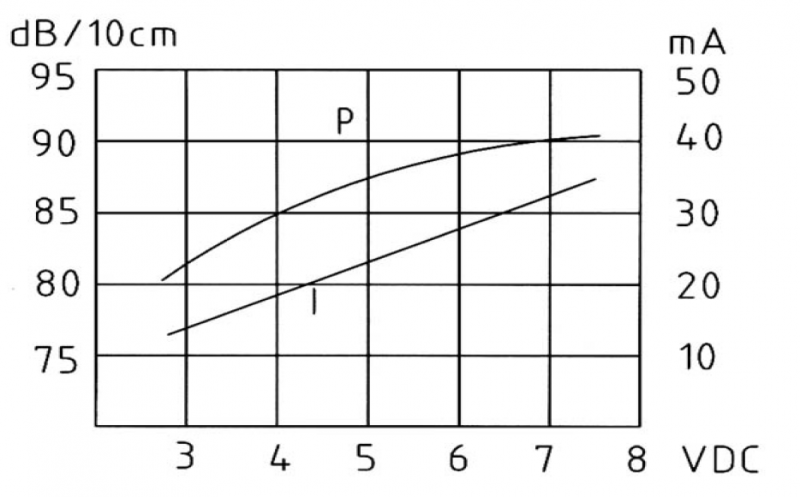

Characteristic Response:

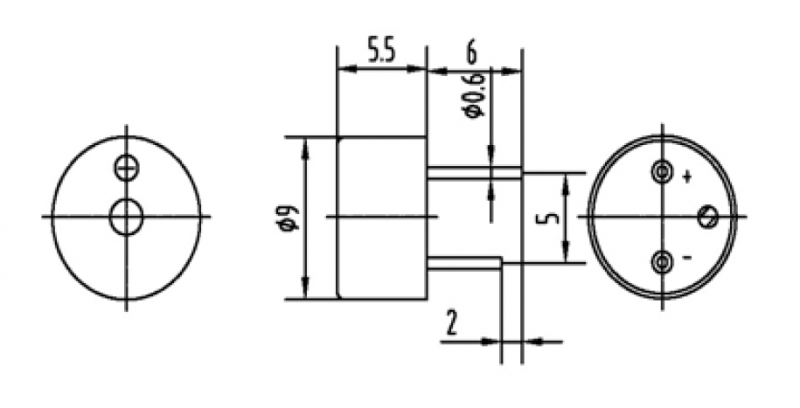

Dimension Drawing:
