| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 60.5 | Measured 70 dB at 1.5V & 10cm | ||
| Frequency kHz | 2.05 | +/- 0.05 kHz | ||
| Voltage V | 1 | 1.5 | 3 | |
| Current mA | 10 | 2048Hz ; 3V p-p Square Wave 1.5V DC | ||
| Temperature ºC | -25 | 70 | ||
| Width mm | 12 | |||
| Height mm | 5.4 | |||
| Termination | pin | Pin separation: 6.50mm |

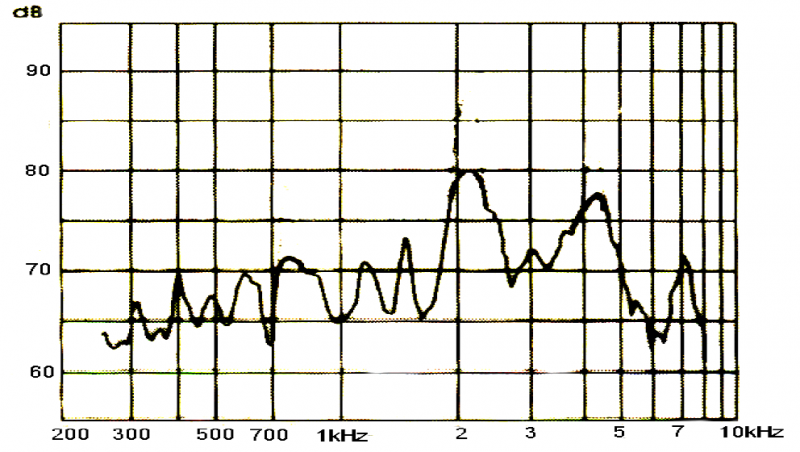

Characteristic Response:

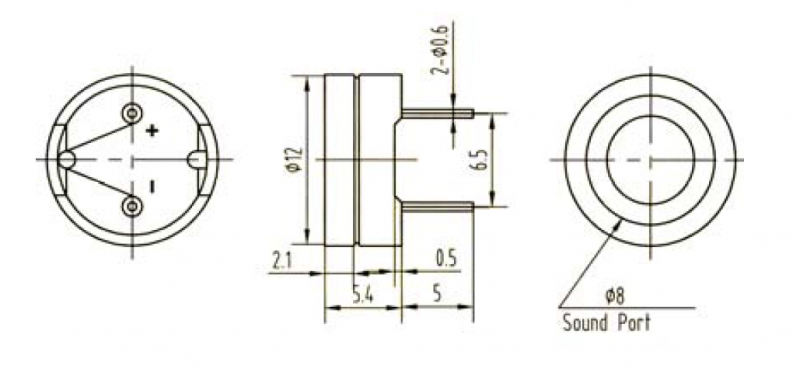

Dimension Drawing:
