| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75 | Measured 75 dB at 24V-DC & 30cm | ||
| Frequency kHz | 0.35 | 0.4 | 0.45 | Rated frequency ±0.05 |
| Voltage V | 15 | 24 | 27 | DC |
| Current mA | 30 | 24V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 17 | |||
| Height mm | 14 | |||
| Termination | pin | Pin separation: 7.60mm |

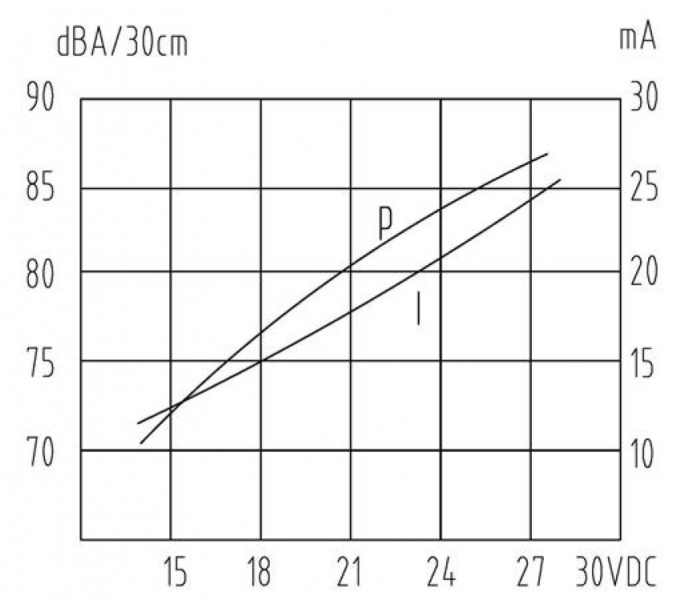

Characteristic Response:

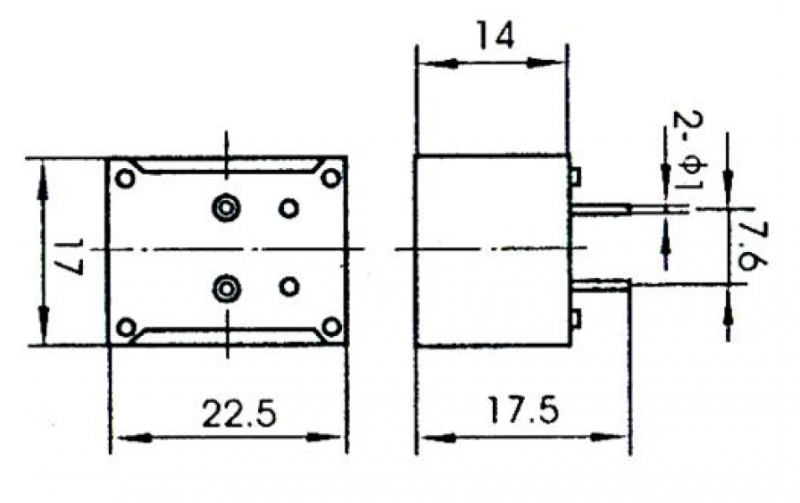

Dimension Drawing:
