Features:
Low current consumption
Trigger control terminal
Pin terminals for direct mounting on P.C Board
| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 66.48 | Measured 70 dB at 20cm | ||
| Frequency kHz | 0.4 | Rated frequency ± 0.1 kHz | ||
| Voltage V | 8 | 12 | 16 | DC voltage |
| Current mA | 15 | |||
| Temperature ºC | -40 | 85 | ||
| Width mm | 22.5 | |||
| Height mm | 14.6 | |||
| Weight g | 9 | |||
| Termination | pin |
Characteristic Response:

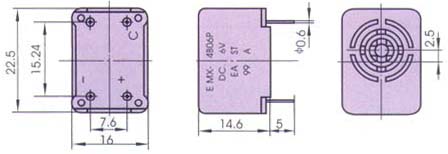

Dimension Drawing:
