Features:
Low current consumption
Compact
Rich sound
| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 66.48 | Measured 70 dB at 20cm | ||
| Frequency kHz | 0.4 | Rated frequency ± 0.1 kHz | ||
| Voltage V | 3 | 6 | 7 | DC voltage |
| Current mA | 20 | |||
| Temperature ºC | -30 | 70 | ||
| Width mm | 33 | |||
| Height mm | 14.5 | |||
| Weight g | 10 | |||
| Termination | lead wire |
Characteristic Response:

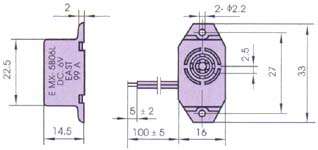

Dimension Drawing:
