| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85 dB at 3V-DC & 10cm | ||
| Frequency kHz | 2.1 | 2.3 | 2.5 | Rated frequency ±0.3 |
| Voltage V | 2 | 3 | 5 | DC |
| Current mA | 24 | 3V DC | ||
| Temperature ºC | -40 | 85 | ||
| Width mm | 12 | |||
| Height mm | 9.5 | |||
| Termination | pin | Pin separation: 7.60mm |

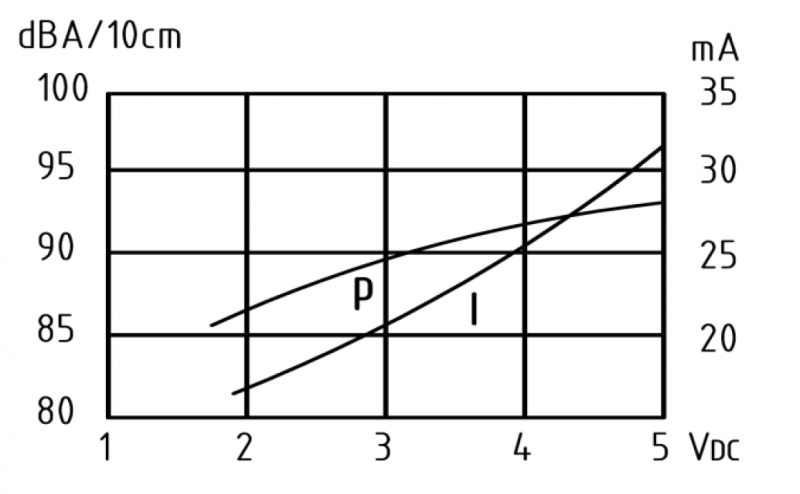

Characteristic Response:

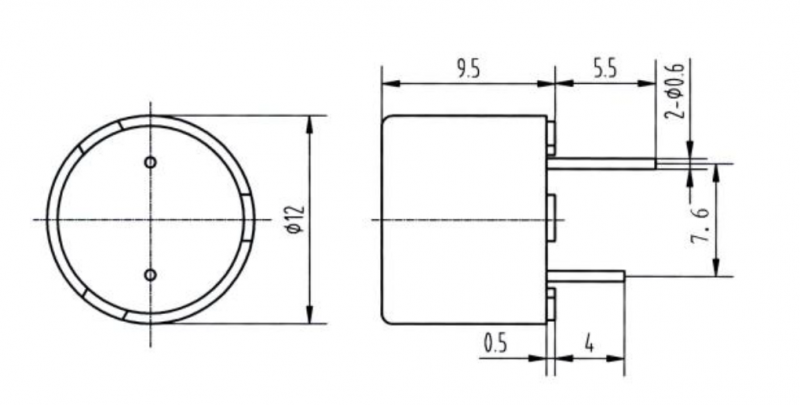

Dimension Drawing:
