| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 73.5 | Measured 83 dB at 5V-DC & 10cm | ||
| Frequency kHz | 1.9 | 2.3 | 2.7 | Rated frequency ±0.4 |
| Voltage V | 3 | 5 | 7 | DC |
| Current mA | 30 | 5V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 12 | |||
| Height mm | 7.5 | |||
| Termination | pin | Pin separation: 7.60mm |

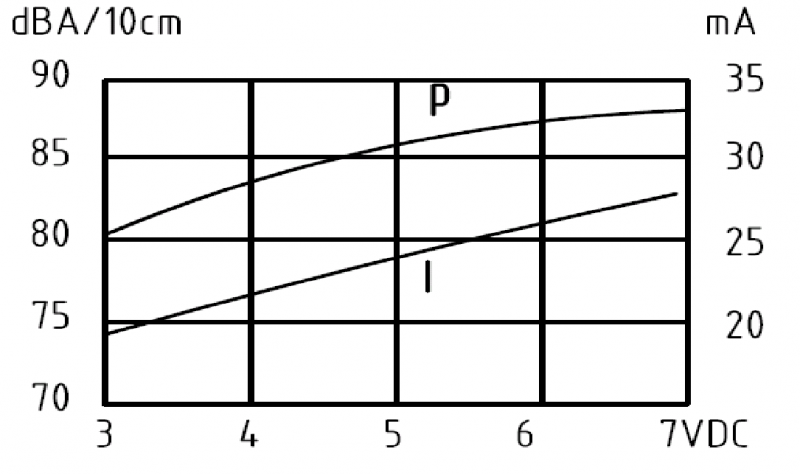

Characteristic Response:

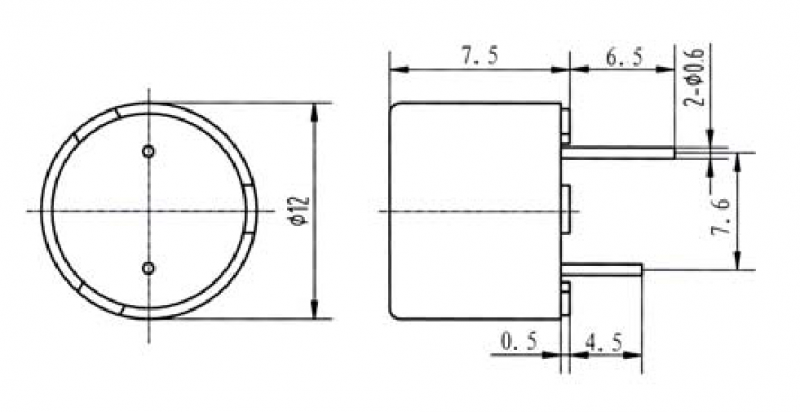

Dimension Drawing:
