Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 96 | Measured 90 dB at 12V-DC & 60cm | ||
Frequency kHz | 2.4 | 2.9 | 3.4 | Rated frequency ±0.5 |
Voltage V | 6 | 12 | 28 | DC |
Current mA | 32 | 12 V DC | ||
Temperature ºC | -20 | 70 | ||
Width mm | 43 | |||
Height mm | 33 | |||
Termination | pin | Pin separation: 7.50mm |

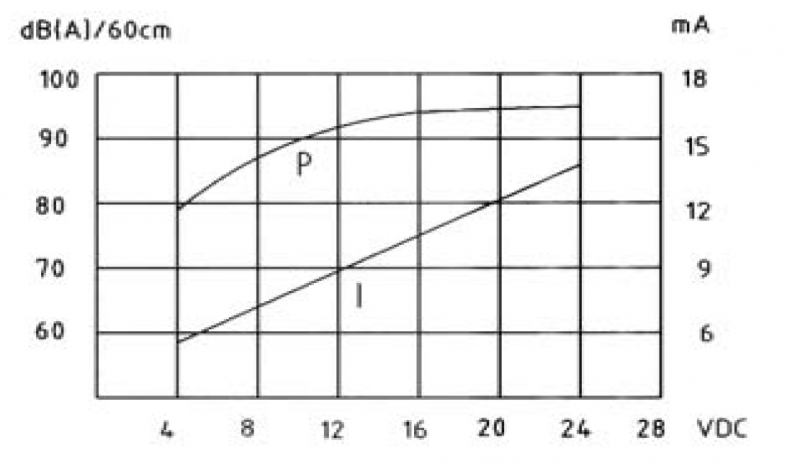

Characteristic Response:

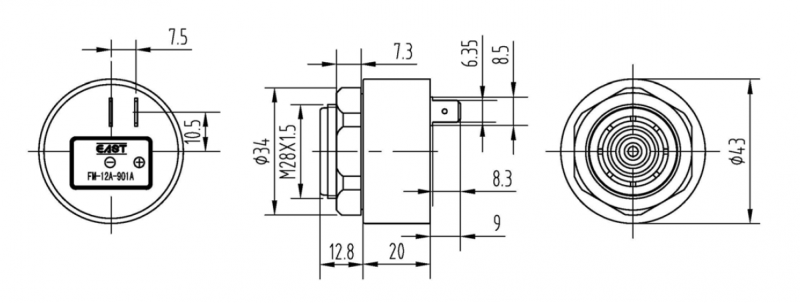

Dimension Drawing:
