| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Pulse Slow Pulse (1.2Hz±20%) | ||
| Sound Pressure Level dB at 30cm | 85 | Measured 85 dB at 220V-AC & 30cm | ||
| Frequency kHz | 2.4 | 2.9 | 3.4 | Rated frequency ±0.5 |
| Voltage V | 110 | 220 | 220 | AC |
| Current mA | 20 | 220V AC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 43.5 | 43.5 | Case:Fire-resistance ABS/Black | |
| Height mm | 33 | |||
| Weight g | 35 | |||
| Termination | solder tab | Pin separation: 32.00mm |

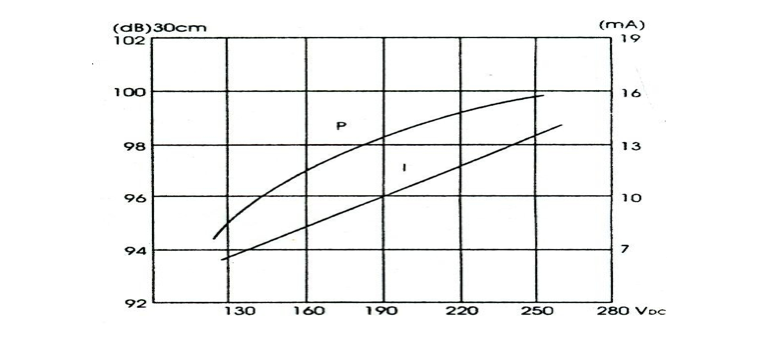

Characteristic Response:

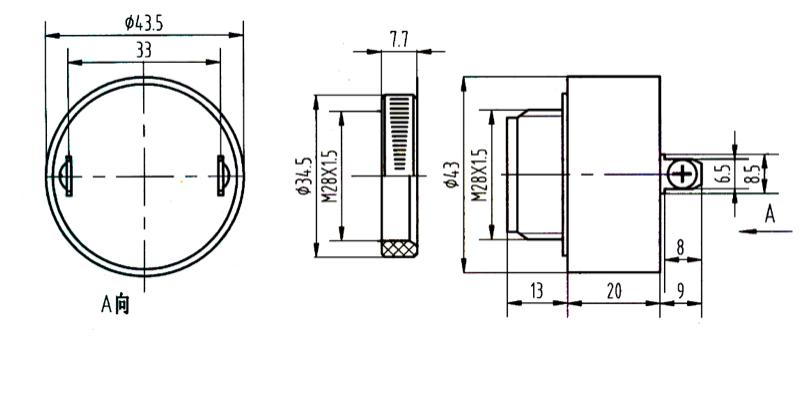

Dimension Drawing:
