| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 80 | Measured 80 dB at 24V-DC & 30cm | ||
| Frequency kHz | 2.4 | 2.9 | 3.4 | Rated frequency ±0.5 |
| Voltage V | 4 | 24 | 28 | DC |
| Current mA | 22 | 24V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 43.5 | |||
| Height mm | 34.5 | |||
| Termination | pin | Pin separation: 32.00mm |

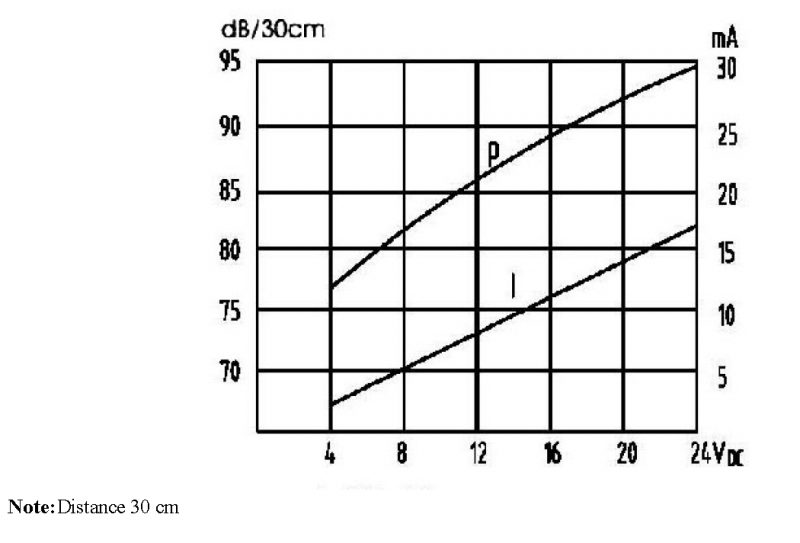

Characteristic Response:

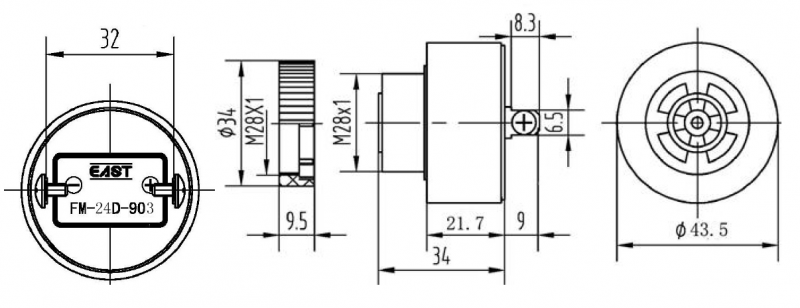

Dimension Drawing:
