| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 96 | Measured 90 dB at 24V-DC & 60cm | ||
| Frequency kHz | 2.5 | 3 | 3.5 | Rated frequency ±0.5 |
| Voltage V | 12 | 24 | 28 | DC |
| Current mA | 20 | 24V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 43 | |||
| Height mm | 33 | |||
| Termination | pin | Pin separation: 32.00mm |

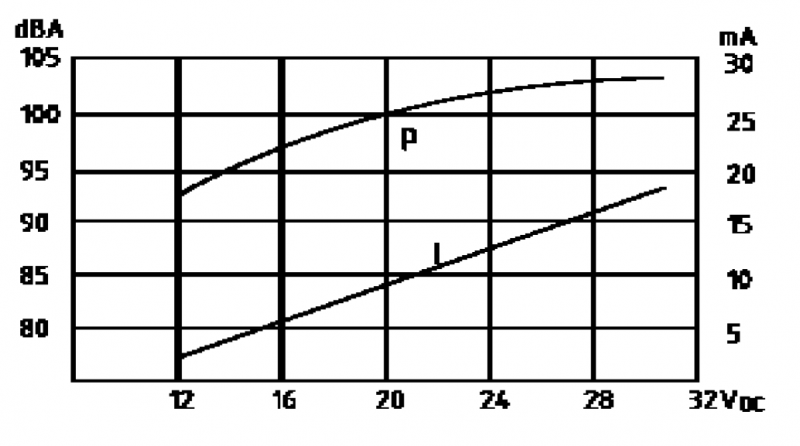

Characteristic Response:
Dimension Drawing:
