Features:
Low consumption
Flange mounting with sire leads
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 85 | Measured 85 dB at 30cm | ||
| Frequency kHz | 3.15 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 3 | 12 | 20 | DC voltage |
| Current mA | 12 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 23 | Case:PA6/Black | ||
| Height mm | 18 | |||
| Weight g | 7 | |||
| Termination | pin | Pin separation: 15.00mm |
Characteristic Response:

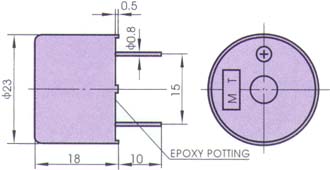

Dimension Drawing:
