Features:
SMD Indicator
Small Form Factor
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 50.5 | Measured 60 dB at 4.1kHz & 3V-P-P Square Wave & 10cm | ||
| Frequency kHz | 4.1 | Rated frequency ±0.3 | ||
| Voltage V | 1 | 3 | 25 | p-p Square Wave |
| Current mA | 3.5 | Square Wave 4.1kHz ; 3V p-p | ||
| Input Capacitance nF | 13 | ±30% (At 1000Hz) | ||
| Temperature ºC | -20 | 85 | ||
| Width mm | 9 | 11 | Case:LCP/Black | |
| Height mm | 1.7 | |||
| Weight g | 0.3 | |||
| Mounting | Surface Mount | |||
| Termination | surface mount |

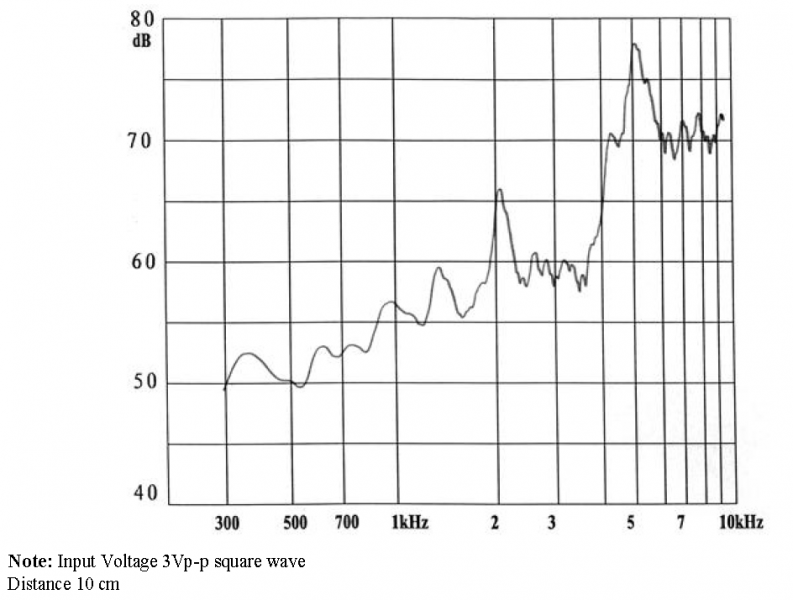

Characteristic Response:

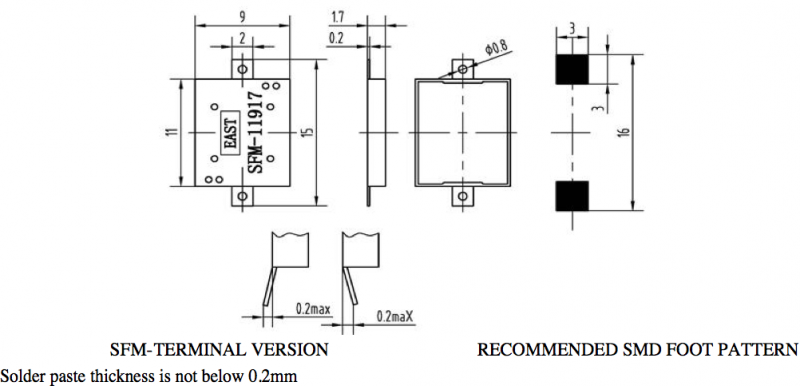

Dimension Drawing:
