| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 77.5 | Measured 87 dB at 5V & 10cm | ||
| Frequency kHz | 2.4 | 2.4 | 2.4 | |
| Voltage V | 4 | 5 | 7 | p-p Square Wave |
| Current mA | 40 | 2400Hz ; 10V p-p Square Wave 5V DC | ||
| Temperature ºC | -40 | 85 | ||
| Width mm | 12.8 | |||
| Height mm | 6.5 | |||
| Termination | surface mount |

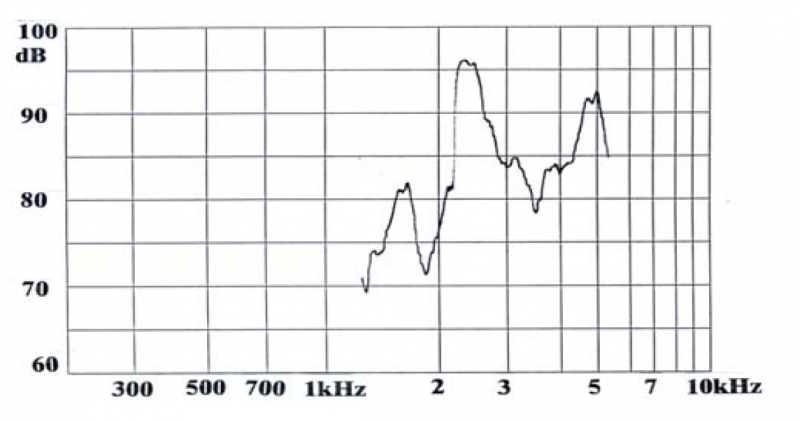

Characteristic Response:

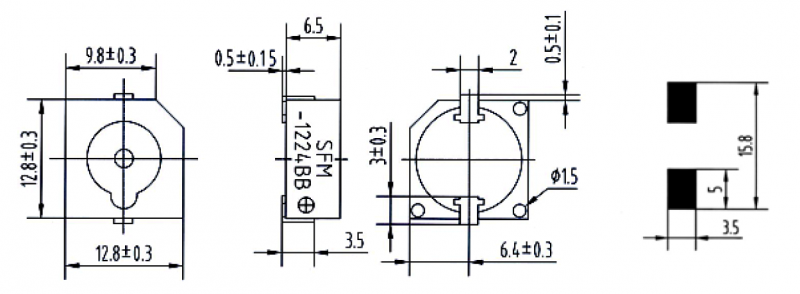

Dimension Drawing:
