Features:
SMD Type
Can Endure Re-flow Solder Process
| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.46 | Measured 85 dB at 10cm | ||
| Frequency kHz | 2.4 | |||
| Voltage V | 4 | 5 | 7 | peak to peak voltage of square wave |
| Current mA | 40 | |||
| Available Input Impedance Ω | 45 | ± 5 | ||
| Temperature ºC | -30 | 85 | ||
| Width mm | 12.8 | |||
| Height mm | 10 | |||
| Weight g | 2.5 | |||
| Termination | surface mount |
Characteristic Response:

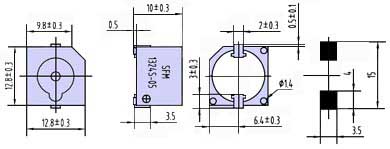

Dimension Drawing:
