| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85 dB at 3.6V & 10cm | ||
| Frequency kHz | 2.7 | 2.72 | 2.73 | |
| Voltage V | 2 | 3.6 | 5 | |
| Current mA | 90 | 2730Hz ; 3.6V p-p Square Wave 3.6V DC | ||
| Temperature ºC | -30 | 80 | ||
| Width mm | 8.7 | |||
| Height mm | 4 | |||
| Termination | surface mount |

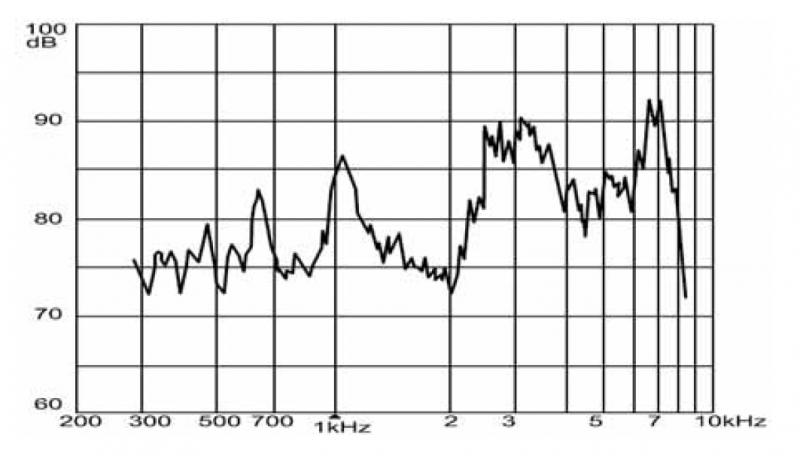

Characteristic Response:

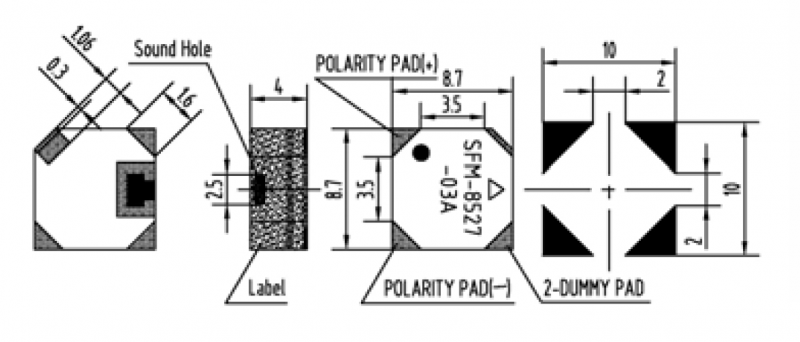

Dimension Drawing:
