| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 70.5 | Measured 80 dB at 1.5V & 10cm | ||
| Frequency kHz | 2.7 | 2.7 | 2.7 | |
| Voltage V | 1 | 1.5 | 2 | |
| Current mA | 80 | 2700Hz ; 1.5V p-p Square Wave 1.5V DC | ||
| Temperature ºC | -20 | 60 | ||
| Width mm | 9.5 | |||
| Height mm | 3.3 | |||
| Termination | surface mount |

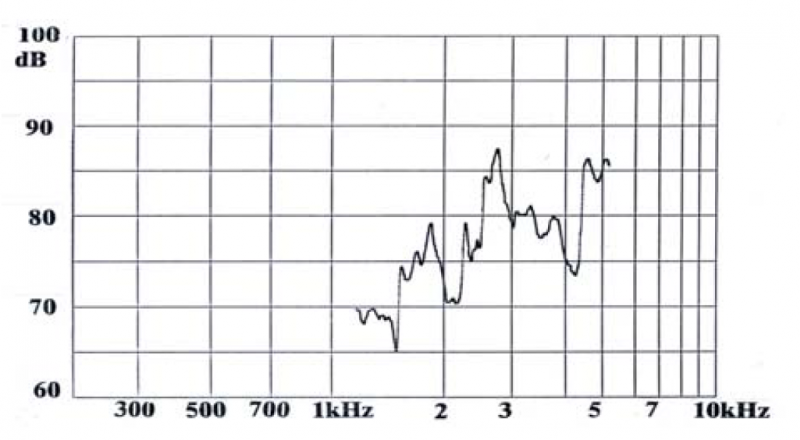

Characteristic Response:

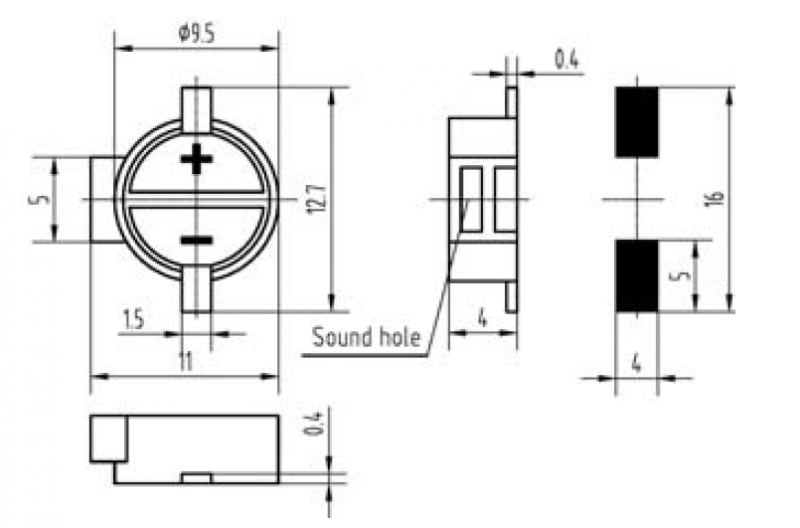

Dimension Drawing:
