| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 91 | Measured 91 dB at 12V-DC & 30cm | ||
| Frequency kHz | 3.2 | 3.7 | 4.2 | Rated frequency ± 0.5 |
| Voltage V | 3 | 12 | 20 | DC |
| Current mA | 10 | 12 V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 23.5 | |||
| Height mm | 17 | |||
| Termination | lead wire |

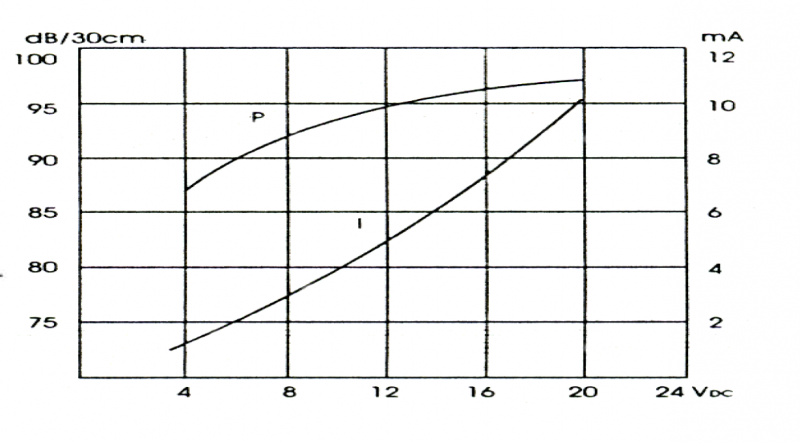

Characteristic Response:

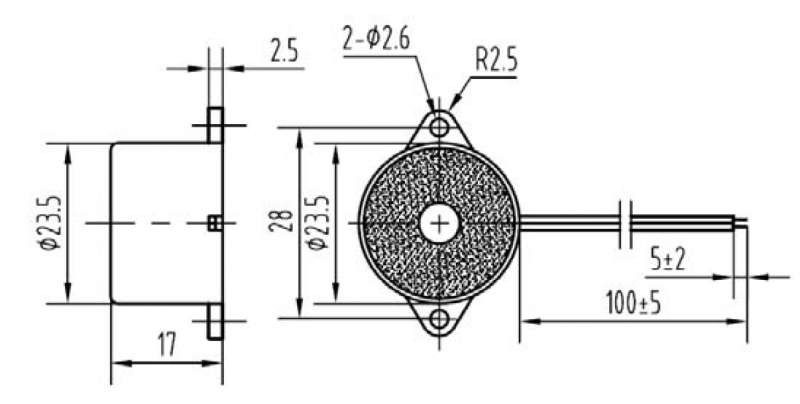

Dimension Drawing:
