Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | External Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 65.5 | Measured 75 dB at 3.5kHz & 3V-p-p Square Wave & 10cm | ||
Frequency kHz | 3 | 3.5 | 4 | Rated frequency ±0.5 |
Voltage V | 3 | 40 | p-p Square Wave | |
Current mA | 2.5 | Square Wave 3.5kHz ; 3V p-p | ||
Temperature ºC | -20 | 70 | ||
Width mm | 30 | |||
Height mm | 5.5 | |||
Termination | lead wire |

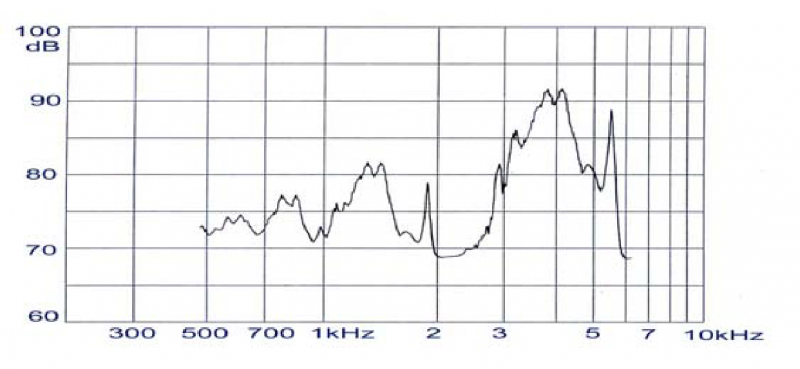

Characteristic Response:

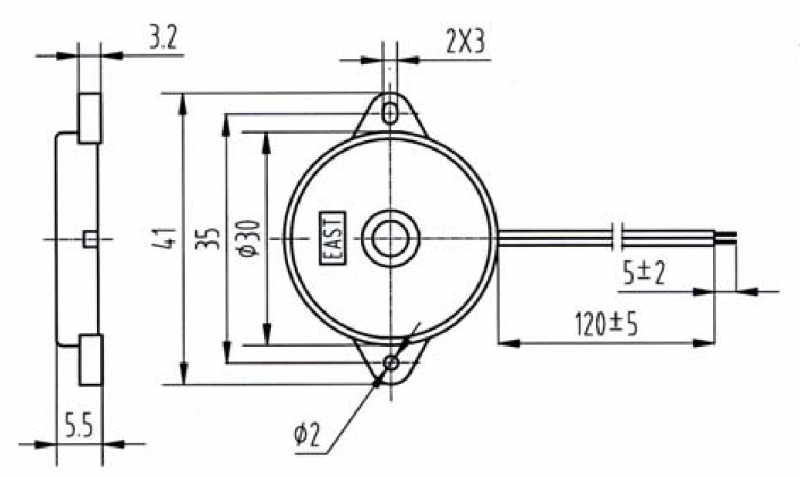

Dimension Drawing:
