Features:
Super-mini size
Low current drain
Gold-plated pins
Endures re-flow soldering process at 260ºC for 30 seconds
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Square Wave | ||
| Sound Pressure Level dB at 30cm | 70.46 | Measured 80 dB at 10cm | ||
| Frequency kHz | 4 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 12 | peak to peak voltage of square wave | ||
| Peak voltage allowed V | 25 | |||
| Current mA | 6 | |||
| Input Capacitance nF | 11 | ± 30% measured at 120 Hz | ||
| Temperature ºC | -20 | 85 | ||
| Width mm | 13 | Case:PPS/Black | ||
| Height mm | 8 | |||
| Weight g | 1 | |||
| Termination | pin |
Characteristic Response:

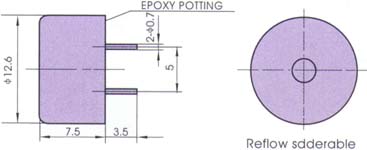

Dimension Drawing:
