Features:
Small and light
Compact structure
High reliability
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 99.44 | Measured 95 dB at 50cm | ||
| Frequency kHz | 4 | 27 | 50 | |
| Voltage V | 2.83 | 10 | RMS sine wave | |
| Temperature ºC | -20 | 70 | ||
| Width mm | 37.8 | Case:ABS/Black | ||
| Height mm | 12.5 | |||
| Weight g | 4 | |||
| Termination | solder tab |
Characteristic Response:

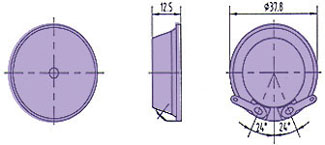

Dimension Drawing:
