Features:
Cone
Voice Applications
External
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Paper | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 84.44 | Measured 80±3dB at 1.5W and 50cm. | ||
| Power W | 1.5 | 2 | ||
| Frequency kHz | 0.24 | 0.24 | 15 | |
| Available Input Impedance Ω | 4 | 4 | 64 | |
| Width mm | 66 | |||
| Height mm | 25.9 |

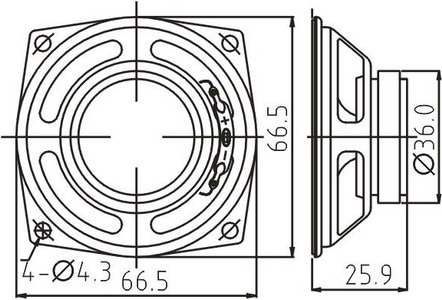

Dimension Drawing:
