| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 81±3dB(SPL) at 1W and 1m. Frequencies: 500 / 600 / 800 / 1000Hz | ||
| Power W | 10 | 12 | ||
| Frequency kHz | 0.2 | ±20% | ||
| Available Input Impedance Ω | 6 | |||
| Width mm | 40 | 157 | ±0.5mm | |
| Height mm | 32 | ±1mm |

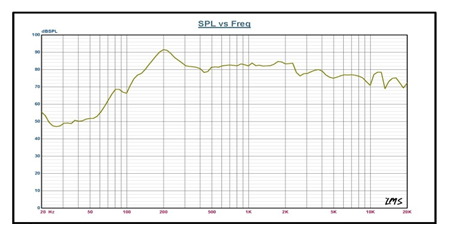

Characteristic Response:

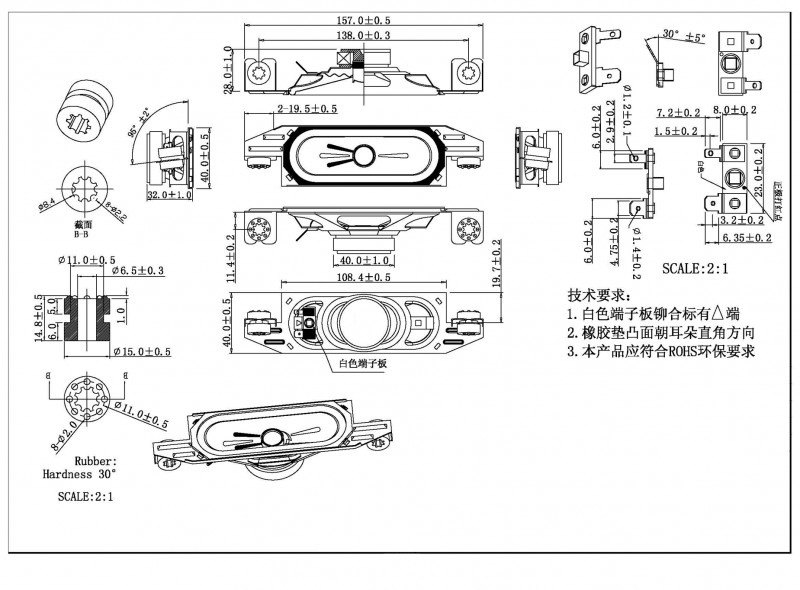

Dimension Drawing:
