Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 82.5 | Measured 92±3dB(SPL) at 0.5W and 0.1m. Frequencies: 1.0 / 1.2 / 1.5 / 2.0kHz | ||
Power W | 0.5 | |||
Frequency kHz | 0.75 | ±20% | ||
Available Input Impedance Ω | 8 | |||
Width mm | 9 | 22 | ||
Height mm | 4.1 |

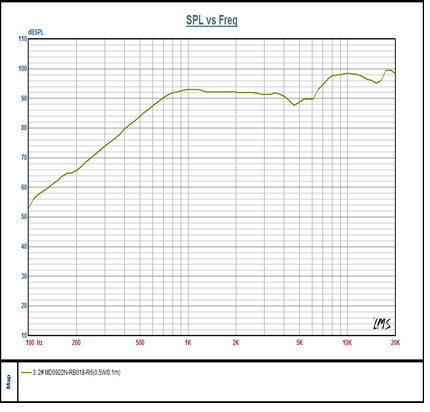

Characteristic Response:

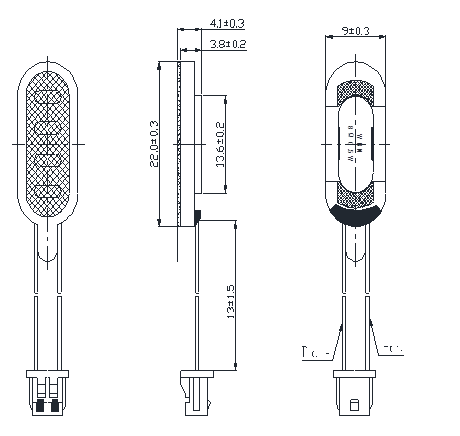

Dimension Drawing:
