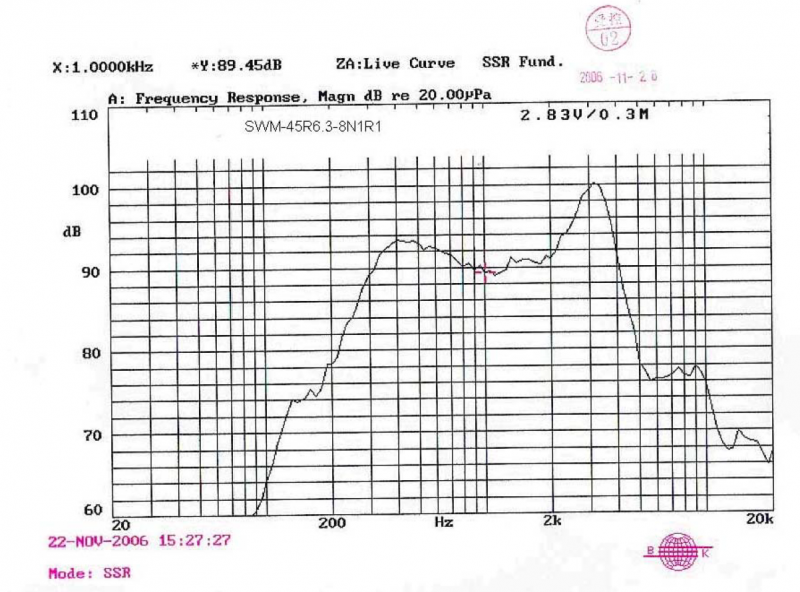

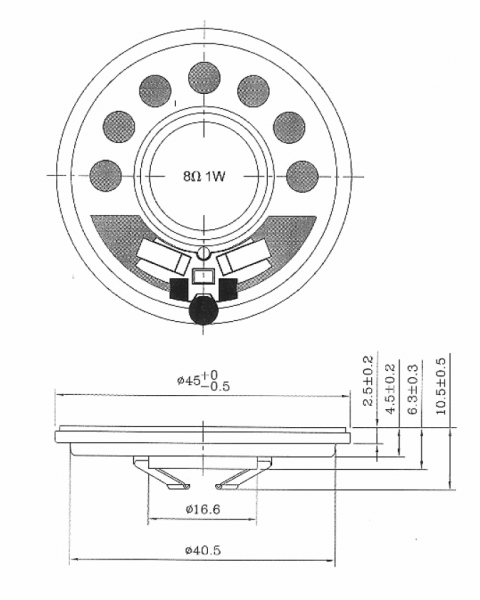

Characteristic Minimum Rated Maximum Notes Sound Pressure Level dB at 30cm 89 ±3dB Power W 1 2 Frequency kHz 0.4 RATED FREQUENCY RANGE, f0 ~ 5000 Hz Available Input Impedance Ω 8 ± 15 % Characteristic Response: Dimension Drawing:
