| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 76dB(SPL) at 1W and 1m. Frequencies: 2.0 / 2.5 / 3.0 / 4.0kHz | ||
| Power W | 3 | 4 | ||
| Frequency kHz | 0.45 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 35 | 55 | ||
| Height mm | 20 |

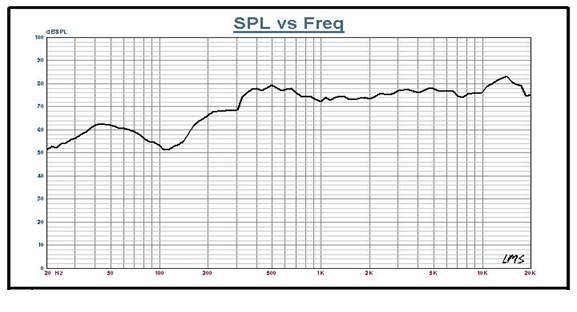

Characteristic Response:

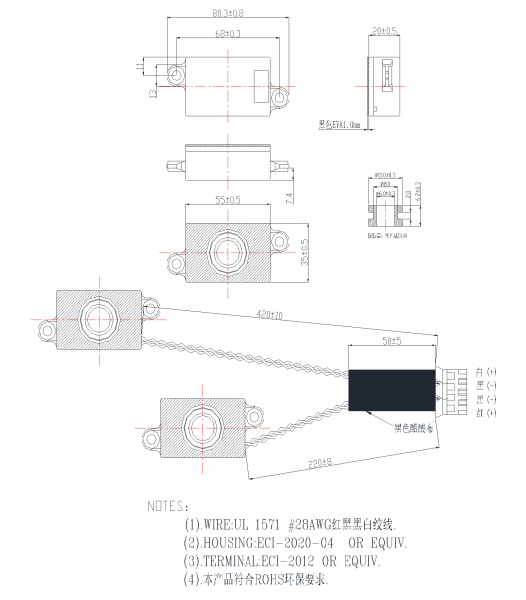

Dimension Drawing:
