| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 88dB(SPL) at 1W and 0.5m. Frequencies: 0.8 / 1.0 / 1.2 / 1.5kHz | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.56 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 53.6 | 67.9 | ||
| Height mm | 23 |

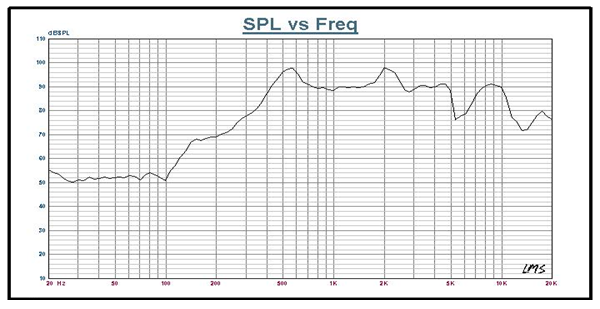

Characteristic Response:

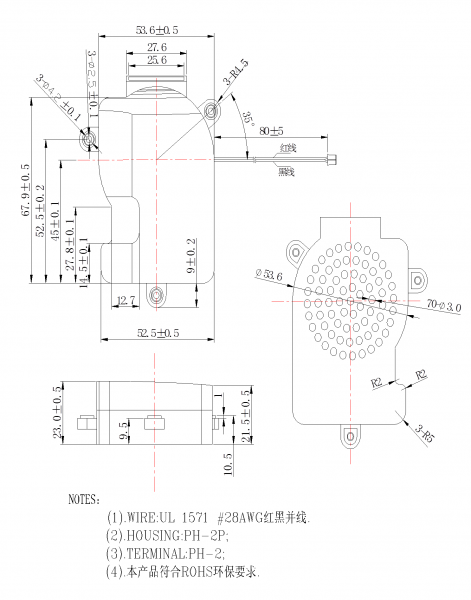

Dimension Drawing:
