| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 83±3dB(SPL) at 0.25W and 0.5m. Frequencies: 600 / 800 / 1000 / 1200Hz | ||
| Power W | 5 | 7 | ||
| Frequency kHz | 0.35 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 77 | ±0.5mm | ||
| Height mm | 24 | ±0.5mm |

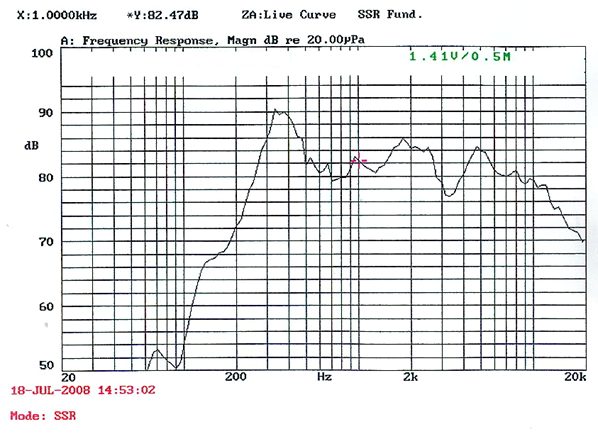

Characteristic Response:

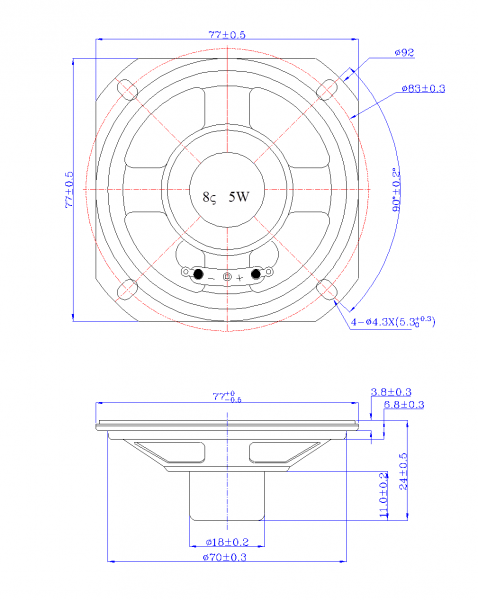

Dimension Drawing:
