| Characteristic | Minimum | Rated | Maximum | Notes |
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 89±3dB(SPL) at 1W and 1m. Frequencies: 400 / 600 / 800 / 1000Hz | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.4 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 77 | ±0.5mm | ||
| Height mm | 24.1 | ±0.5mm |

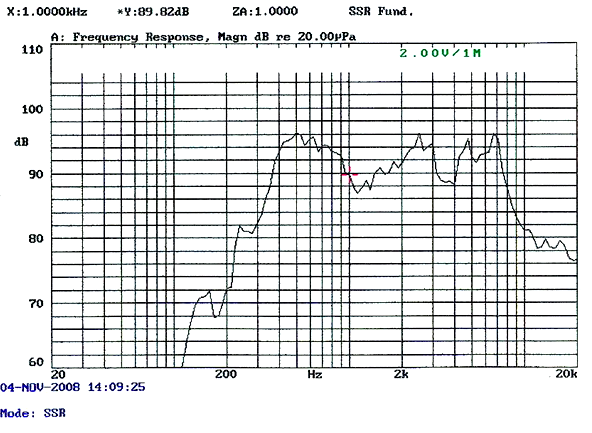

Characteristic Response:

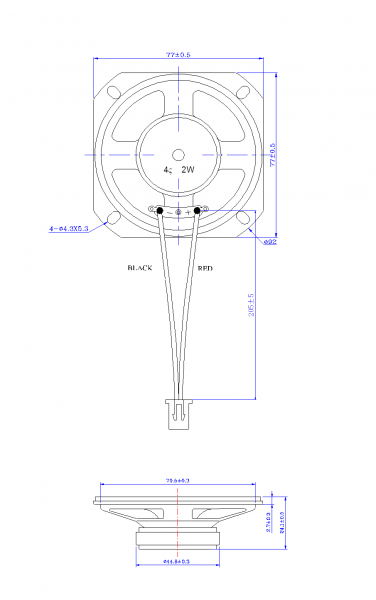

Dimension Drawing:
