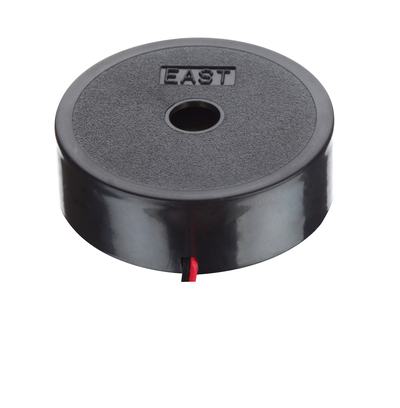

TFM-05BB
Features & Applications
Features
- Strong mid-frequency response (160–2,500 Hz)
- Wide operating voltage range
- Easy installation
- High reliability
- Supports high voltage
- Low power consumption
- High sound pressure levels
Applications
- Consumer Electronics
- Industrial & Automation
- Security Access
- IoT & Smart Home
- Intercom
| Diameter | 44 mm |
|---|---|
| Height | 14 mm |
| SPL | 80 dB |
| Frequency | 0.8±0.5 kHz |
| Rated Voltage | 9Vp-p |
| Mounting | LEAD WIRE |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications

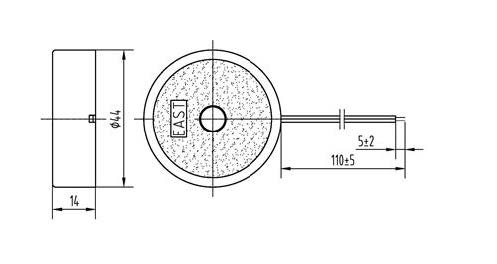

尺寸(mm)

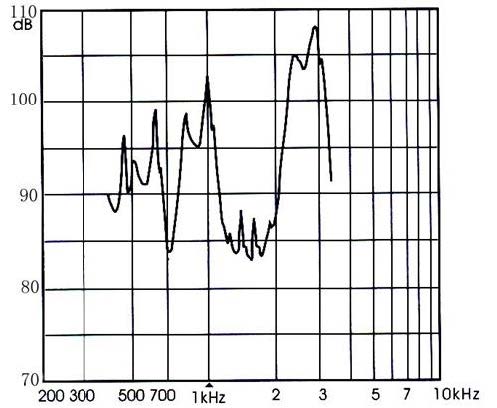

声压
